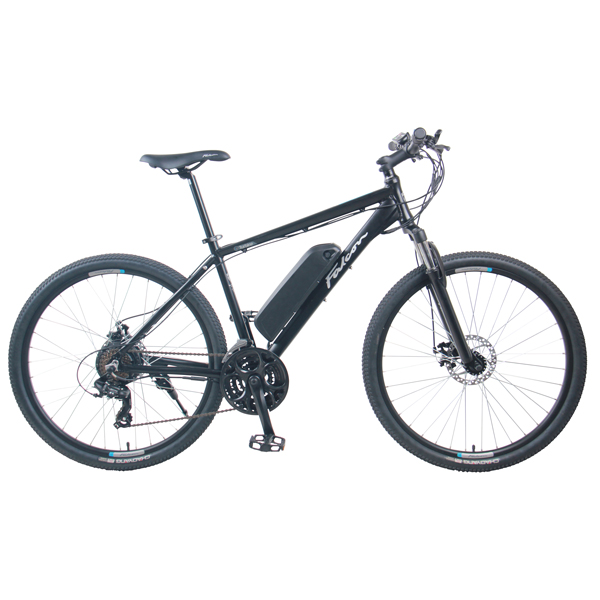

Frame & Fork
Sizes: 27.5 (650B) Wheel, 18″ Alloy Frame
Frame: Falcon 6061 MTB Frame
Fork: Suspension fork with disc mounts
Headset: 1 1/8″ Aheadset
Steering
Handlebar: MTB Lo-Rise bar, 620mm wide
Stem: Ahead Stem, 90mm extension
Grips: Black MTB Grips
Transmission
Shifters: Shimano SL-TX30 Thumbshifter 7x3spd
Front Derailleur: Shimano FD-TY510 3spd
Rear Derailleur; Shimano RD-TY300 7spd
Freewheel: Shimano 7spd 14-28T
Chainwheel: Prowheel 170mm Crank, 28x38x48T Chainring
Bottom Bracket/Motor Cartridge BB 68x119mm
Display 36V LED Display; on/off, 3 levels of power assistance, battery indicator and “walk assist” button
Controller 36V, Limited to 15.5mph (25kmh) maximum assistance
Sensor 12 point pedal sensor
Battery 36V 10Ah Downtube Battery, with battery indicator
Chain: KMC
Charge Time: 5hrs (but top up as required)
Range: 40-45km
Brakes: Mechanical Disc Brakes, 160mm rotors
Brake levers: Alloy Brake Levers with automatic motor cut-off
Pedals: 9/16” Axle
Wheels
Front Hub: 36H, Alloy
Rear Hub: 36V 250W Motor, 36H Alloy body
Rims: Double Wall Alloy, 27.5″ (disc only)
Spokes: 13G
Tyres: 27.5 x 1.95″ Multi-Surface MTB tyres
Saddle
Seat Post: Alloy Micro Adjust, 27.2mm x 300mm
Saddle: Falcon MTB saddle.
Other
Accessories 240V Mains charger, front mudguard mounts, chainstay mounted kickstand.
Weight 21kg (including battery)
